Hilman Rollers are low profile, high capacity moving devices that can be used to move a multitude of things. Ranging in size from small machinery to entire bridges, buildings and offshore oil rigs; Hilman Rollers have moved some of the largest objects in the world. Used as a temporary means for moving a heavy structure, repetitively in assembly line applications or as a permanent installation on board an oil-rig; Hilman Rollers are known throughout the world for their durability. All Hilman Rollers utilize the endless chain principle; which features a chain of steel rolls capable of rotating about a central load-bearing, steel plate. The result is a product that performs as a low friction, high capacity conveyor.
Since 1953, the Hill family has maintained the highest standards of quality that has made Hilman Incorporated the world’s leading manufacturer of high capacity rollers.
FT SERIES
• DELUXE KITS 15 - 60 TONS
• ECONOMY SETS 15 - 200 TONS
• INDIVIDUAL ROLLERS 3.75-50 TONS
ERS SERIES
• DELUXE KITS 15 - 50 TONS
• ECONOMY SETS 15 - 400 TONS
• DELUXE KITS 15 - 60 TONS
• ECONOMY SETS 15 - 200 TONS

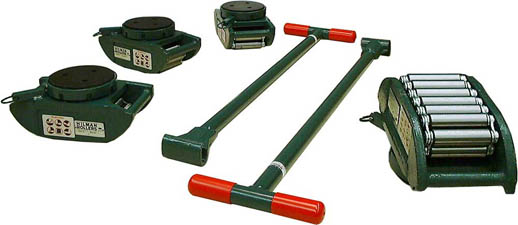

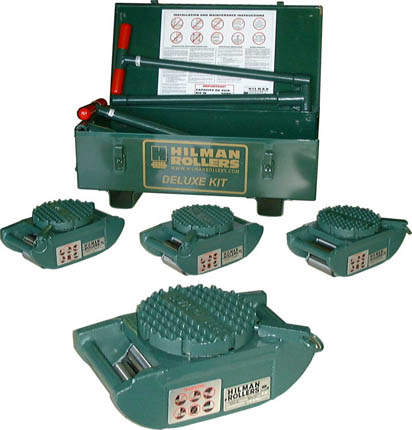

DELUXE FT SET
Features
Everyting required to make heavy moves upto 200 tons is included in Hilman's Deluxe kits and Economy sets! Both include four swivel locking Hilman Rollers with either padded or diamond steel tops and two steering handles. Four preload pads are also included with rollers having the SLD Style Top. Sets Contain full length steering handles. Kits contain knockdown handles that fit into a sturdy storage case. Kit cases are lockable and have lifting grips for easy handling, providing protection from exposure and theft. Each kit or set provides the necessary capacity
ECONOMY FT SET
• INDIVIDUAL ROLLERS
3.75 - 50 TONS
Features
With six capacities, two moving types(rigid and swivel locking) and three top styles (padded, diamond steel and smooth steel), there's a model perfect for almost every heavy moving applications in this Hillman Rollers series! for straight line moves specify the rigid roller. For turns, even in the tightest of corners,use the swivel locking rollers. The swivel-locking type combines swivel and rigid designs with spring loaded locks that can engage every 45 degrees. Steering handles are available for Swivel Lock types in 3 lengths.

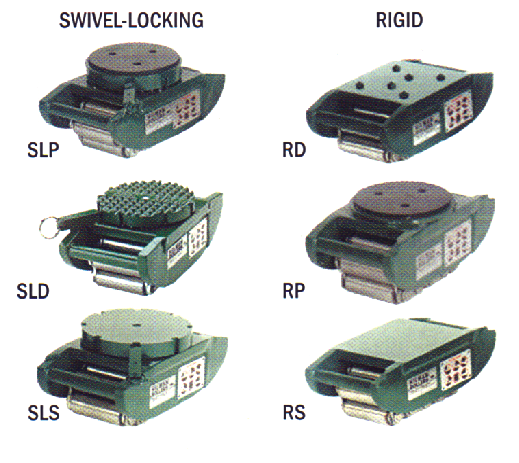

FT Series Hilman Rollers have three versatile top plates. "D: tops have a spike-like steel grid able to grip into wood and provide a secure move for crafted or palletized equipment. "P" tops, with built in neoprene pad, allow some compression and provide a non-slip surface, a versatile choice for moving on less than perfect floors or for moving metal based machines. "S" tops have smooth steel top, ideal for mounting the rollers to equipment or as a base unit for a variety of top modifications.

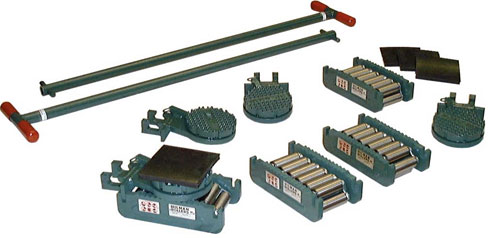

ERS SERIES
• DELUXE KITS 15 - 50 TONS
• ECONOMY SETS 15 - 400 TONS
Features
With or without a kit case, these prepackaged Kits or sets are the value leaders of the Hilman Roller line. Economy Sets, without kit boxes, are available in capacities from 15 to 400 tons. Hilman's Deluxe kits and Economy sets contain four basic ERS Rollers, which can be used as is for straight line moving. Four swivel locking attachments with diamond steel tops are included, along with four preloaded pads and two steering handles. Handles in the sets vary in length according to the capacity of the rollers. Kits handles are a two piece knockdown style to fit into the steel case. All the deluxe gear necessary for important projects is provided.
• INDIVIDUAL ROLLERS
3.75 - 100 TONS
Features
Hilman's ERS Rollers are the lowest profile high capacity rollers in the world! Utilizing the endless chain concept, the basic individual ERS Roller is designed for straight line motion, yet each can be outfitted with a removable swivel attachment for turning and positioning. Seven capacaties are available.

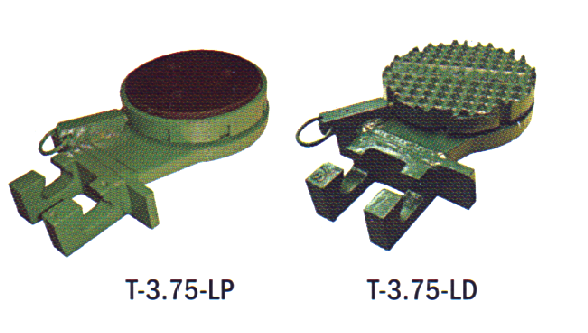

• SWIVEL ATTACHMENTS
Features
For the ultimate versality, each Hilman ERS Series roller can be outfitted with an ERS Swivel Attachment. Attachment add minimal height to the basic roller, while providing ability to make turns without jacking the equipment. Featuring chrome steel ball bearing for smooth operation, attachments come with diamond steel or padded tops and swivel locking devices. Padded attachments help minimize metal-to-metal slippage. Height Equalizers, which increase the height of the roller to that of a roller without swivel attachment, are also available for each roller size.
